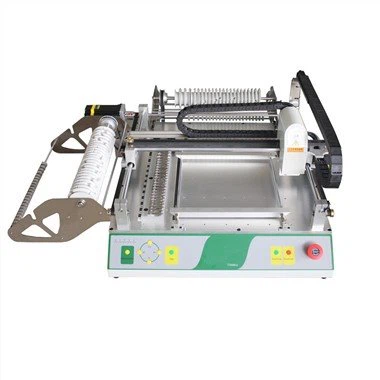

Small Desktop Pick and Place Machine
Your Professional Small Desktop Pick and Place Machine Supplier!
Wenzhou Hecan Technology Co.,Ltd. has more than 10 years of experience focusing on manufacturing and developing SMT production lines. We provide specific SMT line solutions for different customers, which can meet every single need. Our main products include pick and place machines, reflow ovens, and related supporting infrastructure such as solder mixer machines, manual/semi-automatic stencil printers, conveyor loaders/unloaders, etc.
why choose us
Advanced Technology
Our proprietary placement machine control software (with a placement accuracy of ±0.01mm), combined with continuously evolving SMT core technology, provides customers with a minimum one-year warranty and 24/7 online technical support.
Customized Services
We offer customized SMT production line solutions tailored to individual customer needs, ensuring that they meet diverse application scenarios. We are committed to continuously delivering advanced products and efficient technical support to our global customers.
Quality Control
We have obtained multiple international certifications, including CE. Each batch of products comes with a complete quality inspection report, fully guaranteeing product quality and alleviating customer concerns.
Professional Team
We have over 200 employees, including a team of experienced high-tech R&D professionals and a professional marketing team, who possess strong technical implementation and customer service capabilities.
Specification
|
Model |
TVM802A |
|
Max applicable PCB |
20*20mm~340*340mm |
|
Max XY Moving rang |
395*450mm |
|
Max Z Moving range |
12.5mm |
|
Placement head quantity |
2 |
|
Mounting speed without vision |
7000CPH |
|
Mounting speed with vision |
5500CPH |
|
Mounting accuracy |
±0.025mm |
|
Applicable component |
0402-5050. SOP. TQFP. QFN BGA etc. |
|
Component supply |
Tape reel, Bulk, Tubular, Tray etc. |
|
Vision system |
2 HDCCD Camera |
|
Driver |
High voltage driver |
|
Feeder count & Tape width |
Total=29PCS |
|
Pump |
Silent breathless vacuum pump Blowing pump |
|
Leakage material detection |
Vacuum |
|
Power |
125W (average power) |
|
Power supply |
AC220V or AC110V |
|
Package size |
L1070*W770*H420mm |
|
Volume |
0.32CBM |
|
Net weight |
45kg |
|
Gross weight |
58KG |
|
Support PCB design software |
Protl99/Altium Designer/Eagle/Pads/Allegre etc. |
Compact Design: The small desktop pick and place machine is designed to fit comfortably on a standard workbench or desktop, making it an ideal choice for small-scale, space-constrained environments.
High Placement Accuracy: Despite its compact size, the machine is capable of placing components with remarkable precision, typically achieving an accuracy of ±0.1 mm or better, ensuring reliable and consistent assembly.
Component Compatibility: The machine supports a wide range of component types, including resistors, capacitors, ICs, and other surface mount devices, allowing for a diverse range of assembly projects.
Multiple Feeders: The small desktop pick and place machine is equipped with multiple component feeders, allowing for the simultaneous loading of different component types, improving workflow efficiency.
User-Friendly Interface: The machine's intuitive control panel and accompanying software make it easy for users to set up, program, and operate the system, even for those with limited experience in electronics manufacturing.
Automated Placement: The machine's pick-and-place mechanism automates the tedious task of manually placing components, reducing the risk of human error and improving overall productivity.
Affordable and Accessible: Compared to larger, industrial-grade pick and place machines, the small desktop pick and place machine is designed to be more affordable and accessible to a wider range of users, making it a cost-effective solution for small-scale electronics assembly.
Key Components of Small Desktop Pick and Place Machine
Control System
Controls the movement and actions of the pick and place machine, coordinates the entire process, and ensures accurate positioning.
Feeder System
Holds and supplies the components to the pick and place head.
Pick and Place Head
Picks up components from the feeder and places them onto the PCB.
Vision System
Uses cameras or other sensors to identify the position of components, ensuring accurate placement on the PCB.
Conveyor System
Transports the PCBs through the pick and place machine, ensuring an efficient assembly process.
Small Desktop Pick and Place Machine Working Environment
Do not use machine in a noisy environment, such as high frequency welding machine.
Do not use machine if the power supply voltage exceed the rated voltage ± 10%.
Do not use machine and pull the plug when thunder to avoid any accident caused by damaged electrical component.
Small Desktop Pick and Place Machine Usage Instructions
Set up the Machine: Carefully unpack the small desktop pick and place machine and secure it to a stable workbench or desktop. Ensure that all the necessary components, such as the control unit and power supply, are properly connected.
Load the Component Feeders: Carefully load the machine's component feeders with the appropriate parts, ensuring that the components are properly oriented and secured.
Prepare the PCB: Place the printed circuit board on the machine's work surface, aligning it with the placement area.
Configure the Placement Program: Utilize the machine's control panel or accompanying software to input the specific placement program, adjust parameters, and calibrate the machine for the desired project requirements.
Start the Placement Process: Initiate the placement process by pressing the appropriate controls on the machine. The small desktop pick and place machine will automatically pick up the components from the feeders and place them on the PCB with high precision.
Monitor the Process: Closely observe the machine's operation, checking for any errors or issues that may arise during the placement process. Adjust settings or troubleshoot as needed to maintain optimal performance.
Unload the Assembled PCB: Once the placement process is complete, carefully remove the assembled PCB from the machine, ensuring that the components are securely in place.
Our Services
Product introduction
We provide detailed product introductions, including specifications, functions, features, etc., to ensure that customers have a clear understanding of our products.
01
Quotation and inquiry
Respond quickly to customer inquiries, provide accurate and clear quotations, and ensure that customers understand every cost.
02
Order processing
Process customer orders efficiently, ensure that orders are accurate, and follow up on order progress in a timely manner.
03
Logistics arrangements
Arrange fast and reliable logistics solutions to ensure that products are delivered to customers safely and on time.
04
Product warranty
Provide comprehensive product warranty services. The normal warranty period for all our products is at least 1 year.
05
Packaging and Shipping
|
Packaging |
Wooden box, PE film |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
