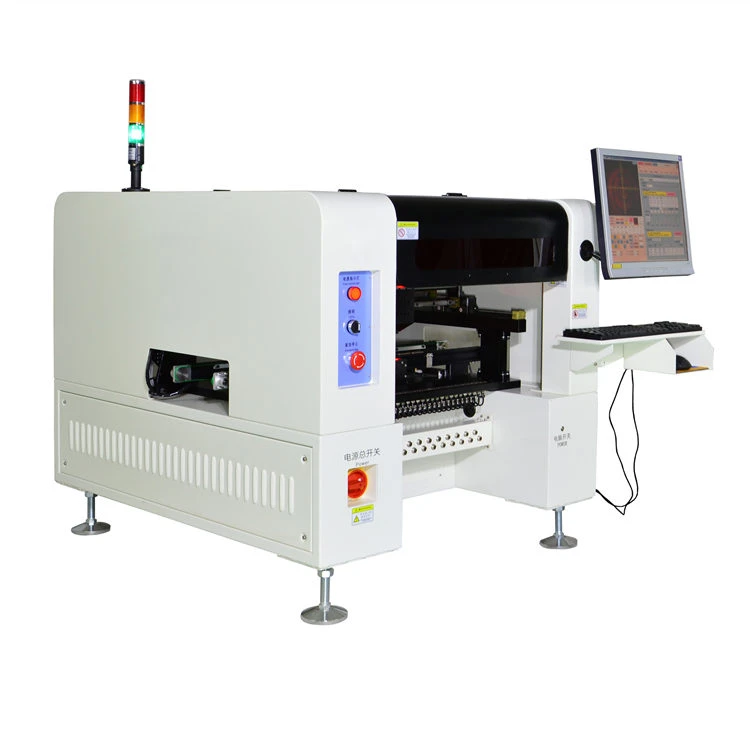

4 Heads PNP H4 with 50 Feeder Positions
Your Professional 4 Heads PNP H4 with 50 Feeder Positions Supplier!
Wenzhou Hecan Technology Co.,Ltd. has more than 10 years of experience focusing on manufacturing and developing SMT production lines. We provide specific SMT line solutions for different customers, which can meet every single need. Our main products include pick and place machines, reflow ovens, and related supporting infrastructure such as solder mixer machines, manual/semi-automatic stencil printers, conveyor loaders/unloaders, etc.
why choose us
Advanced Technology
Our proprietary placement machine control software (with a placement accuracy of ±0.01mm), combined with continuously evolving SMT core technology, provides customers with a minimum one-year warranty and 24/7 online technical support.
Customized Services
We offer customized SMT production line solutions tailored to individual customer needs, ensuring that they meet diverse application scenarios. We are committed to continuously delivering advanced products and efficient technical support to our global customers.
Quality Control
We have obtained multiple international certifications, including CE. Each batch of products comes with a complete quality inspection report, fully guaranteeing product quality and alleviating customer concerns.
Professional Team
We have over 200 employees, including a team of experienced high-tech R&D professionals and a professional marketing team, who possess strong technical implementation and customer service capabilities.
Specification
|
Model |
H4 |
|
Number of placement heads |
4 (High accuracy) |
|
Number of calibrated cameras |
6 |
|
Number of feeder positions: |
50/44 (can be selected) |
|
Number of trays |
Support up to 48 non- feeder devices, each material can specify its coordinates within the mounting range, and further expand the single-machine order receiving capability from the practical aspect |
|
Maximum mounting speed |
7000CPH |
|
Avenge mounting speed |
6000CPH |
|
Combination mounting speed |
5000CPH |
|
Mounting accuracy range |
0201-40 * 40mm pin pitch 0.3mm chip (In the case of optional support for electric feeder, stable placement of trapezoidal LED lamp beads in 0603 package, 0402, 0201) |
|
PCB entry mode |
Left-in and right-out automatically enter the board, support the connection function of left and right equipment |
|
Repetition positioning accuracy |
0.01mm |
|
Nozzle buffer range |
4.5mm |
|
Maximum moving range of Z axis |
20mm |
|
Maximum height for components |
7 mm (Can be customized to 20mm) |
|
Maximum PCB circuit board size |
350×190mm (If it is changed to 44-bit feeder, it can be 350mm×280mm) |
|
Drive motor |
AC servo motor |
|
Guide rail |
Linear guide rail |
|
Drive mode |
Ball screw |
|
Suction nozzle vacuum source |
High-speed vacuum generator with vacuum release function |
|
Average power |
600W |
|
Power supply |
220/110V 50/60Hz |
|
Ensure the normal operation of the equipment. Compressed air pressure range |
0.5-0.6Mpa |
|
Minimum exhaust volume of air supply source |
80-120L / min, volume above 50L |
|
Air source quality requirements |
Oil water filter; ≥50L, dust filter and air pressure stabilizer etc |
|
The trachea requires |
An outer diameter of 10 mm and a material of PU |
|
Weight (Desk /Vertical) |
210/280KG |
|
Dimensions (Desk machine) |
114*90*90CM |
|
Dimensions (Vertical machine) |
140*90*134CM |
4 Heads PNP H4 with 50 Feeder Positions Feature
SMT pick and place machine with 50 feeders +4 heads adopts Panasonic servo motor to ensure it is stable and accuracy
SMT pick and place machine uses imported Straight guide rail +screw Guide can get faster speed and more stable
Four mounting heads work together, under 6 cameras inspection come with 50 feeder positions will make machine working more.
4 Heads PNP H4 with 50 Feeder Positions Basic Principles
Component Feeding:
The PNP machine is equipped with a system of feeders that hold the electronic components, such as resistors, capacitors, ICs, and connectors. These feeders can be tape feeders, tray feeders, or bulk feeders depending on the component type and packaging.
Component Recognition:
The PNP machine utilizes vision systems and sensors to identify and locate the components in the feeders. This involves capturing images, analyzing patterns, and using algorithms to determine the position, orientation, and dimensions of each component.
PCB Alignment:
The PCB is positioned on the machine's work area, typically on a conveyor or a dedicated fixture. The PNP machine uses alignment mechanisms, such as fiducial marks or optical sensors, to precisely position the PCB in the correct orientation.
Component Pickup:
Once the machine has identified the components and aligned the PCB, it employs a robotic arm or gantry system with vacuum nozzles or specialized tools to pick up the components from the feeders. The selection of the appropriate tool and nozzle depends on the component type, size, and handling requirements.
Component Placement:
The robotic arm moves the component to the designated location on the PCB. The machine uses the vision system and precision controls to align the component with the correct solder pads or mounting locations on the PCB.
Component Placement Verification:
After the component is placed, the PNP machine often employs vision systems or sensors to verify the accuracy of the placement. This helps detect any misalignment or defects in real-time and ensures the component is correctly seated on the PCB.
Repeat Process:
The PNP machine repeats the above steps for each component on the PCB, working in a sequential or simultaneous manner depending on the machine's capabilities. This process is highly automated and can handle hundreds or thousands of components per minute, depending on the machine's speed and complexity.
Soldering:
Once all components are placed on the PCB, it is typically transferred to a separate process, such as an SMT reflow oven, where the solder paste is melted to create reliable electrical connections between the components and the PCB.
● Household appliances industry
● Auto electronics industry
● Power industry
● LED industry
● Security,instruments and meters industry
● Communications industry
● Intelligent control industry
● Internet of Things(IOT) industry and military industry, etc.
Our Services
Product introduction
We provide detailed product introductions, including specifications, functions, features, etc., to ensure that customers have a clear understanding of our products.
01
Quotation and inquiry
Respond quickly to customer inquiries, provide accurate and clear quotations, and ensure that customers understand every cost.
02
Order processing
Process customer orders efficiently, ensure that orders are accurate, and follow up on order progress in a timely manner.
03
Logistics arrangements
Arrange fast and reliable logistics solutions to ensure that products are delivered to customers safely and on time.
04
Product warranty
Provide comprehensive product warranty services. The normal warranty period for all our products is at least 1 year.
05
Packaging and Shipping
|
Packaging |
Wooden box, PE film |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
