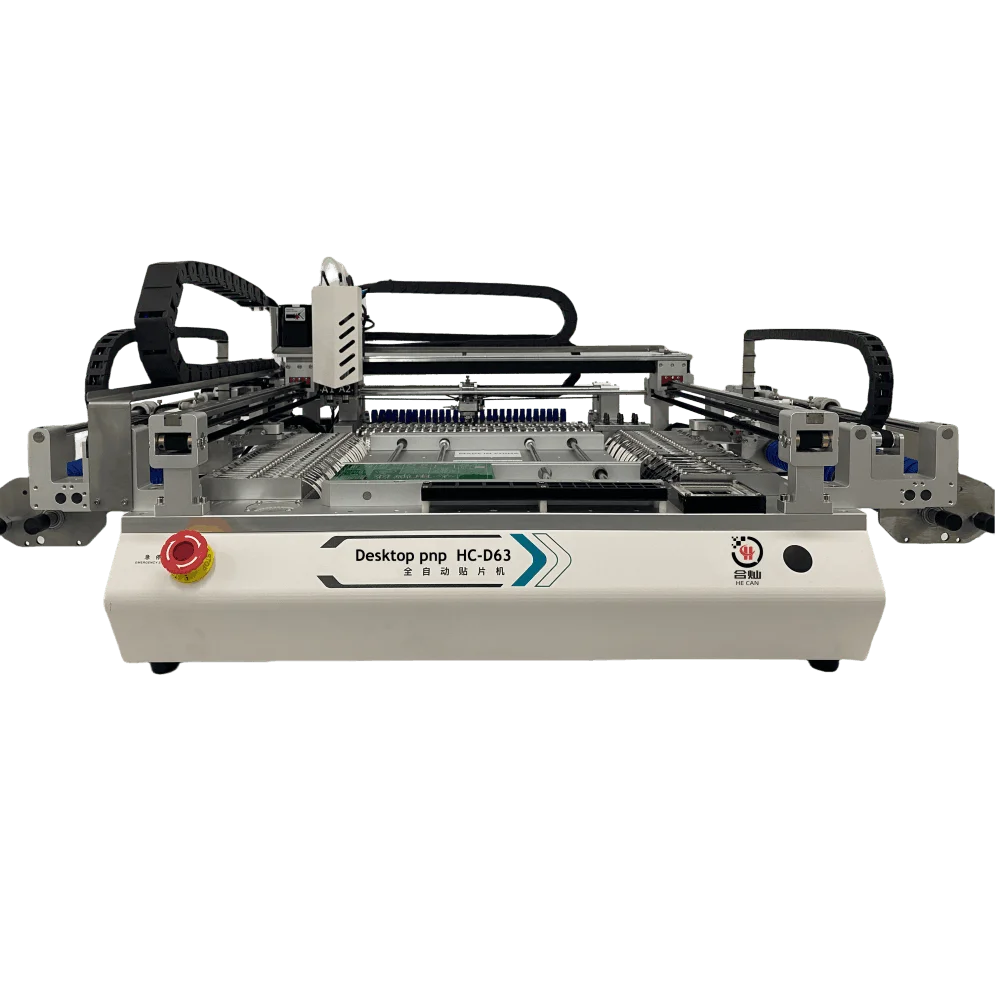

Auto-nozzle Change Desktop Pnp with 63 Feeder HC-D63
auto-nozzle-change-desktop-pnp-with-63-feeder can be customization
Send Inquiry
Product Introduction
Auto-nozzle-change-desktop-pnp-with-63-feeder can be customization HC-D63
Introduction

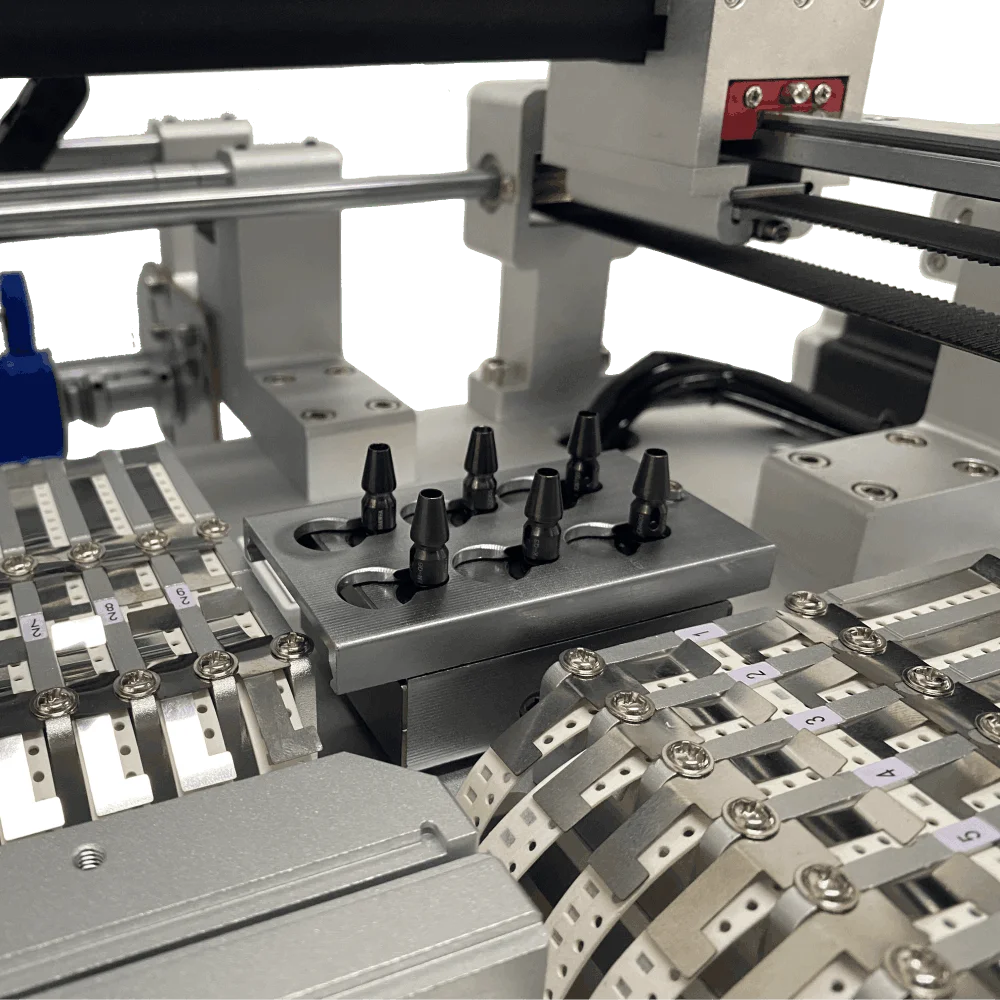

The machine D63 with AUTO NOZZLE CHANGE INCLUDING 6PCS OF NOZZLE FREE
software designed and developed by our self. It is available in English. And we will keep updating it. Customers can get updated software regularly. Machine is of high quality,with at least one-year warranty, lifetime maintenance
Feature
1.Based on the desktop H4, this model adds a base, making the assembly line fully automated
2. DESKTOPpick and place machine with 63 feeders +2 headsto ensure it is stable and accuracy 3. SMT pick and place machine uses imported belt guide rail can get faster speed and more stable 4. AOTO NOZZLE CHANGE WILL BE FAST AND EASIER +63 FEEDER
|
Specification
|
|
|
Model
|
HC-D63
|
|

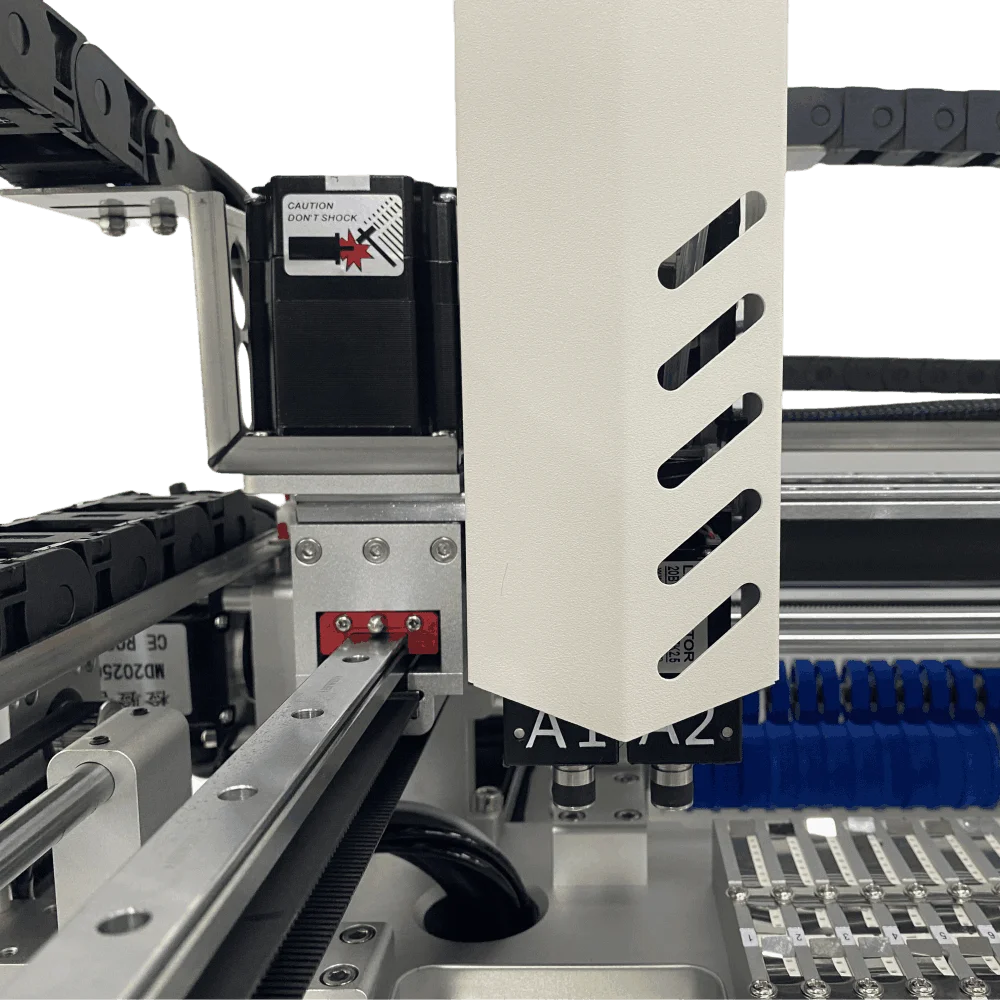

Number of placement heads
|
2×6(Automatic Switching of 6 types
|
|
Number of calibrated cameras |

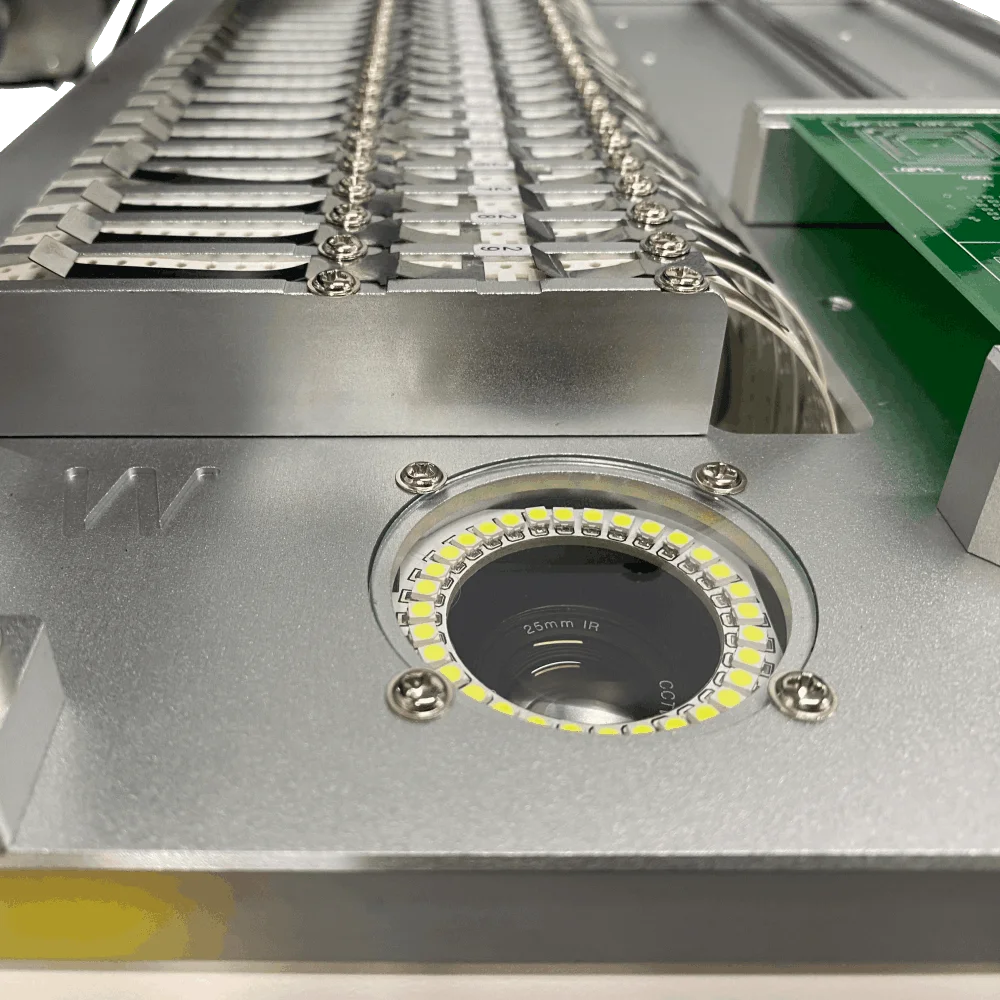

Standard Mark Camera +2 Visual
Camera |
|
Number of feeder positions:
|
63/83(can be selected)
|
|
Number of trays |
Back/front each 10pcs
|
|
Combination mounting speed
|
5000CPH
|
|
Mounting accuracy range |
RC(0402,0603,0805,1206 etc) LED Lamp Beads(0603,0805,3014 ,5050 etc) Chip(SOT,SOP,QFN,BGA etc)
|
|
Repetition positioning accuracy
|
0.028mm
|
|
Maximum moving range of Z axis
|
22mm
|
|
Maximum height for components
|
20mm
|
|
Maximum PCB circuit board size
|
320×329mm(320×359mm)
|
|
Drive mode
|

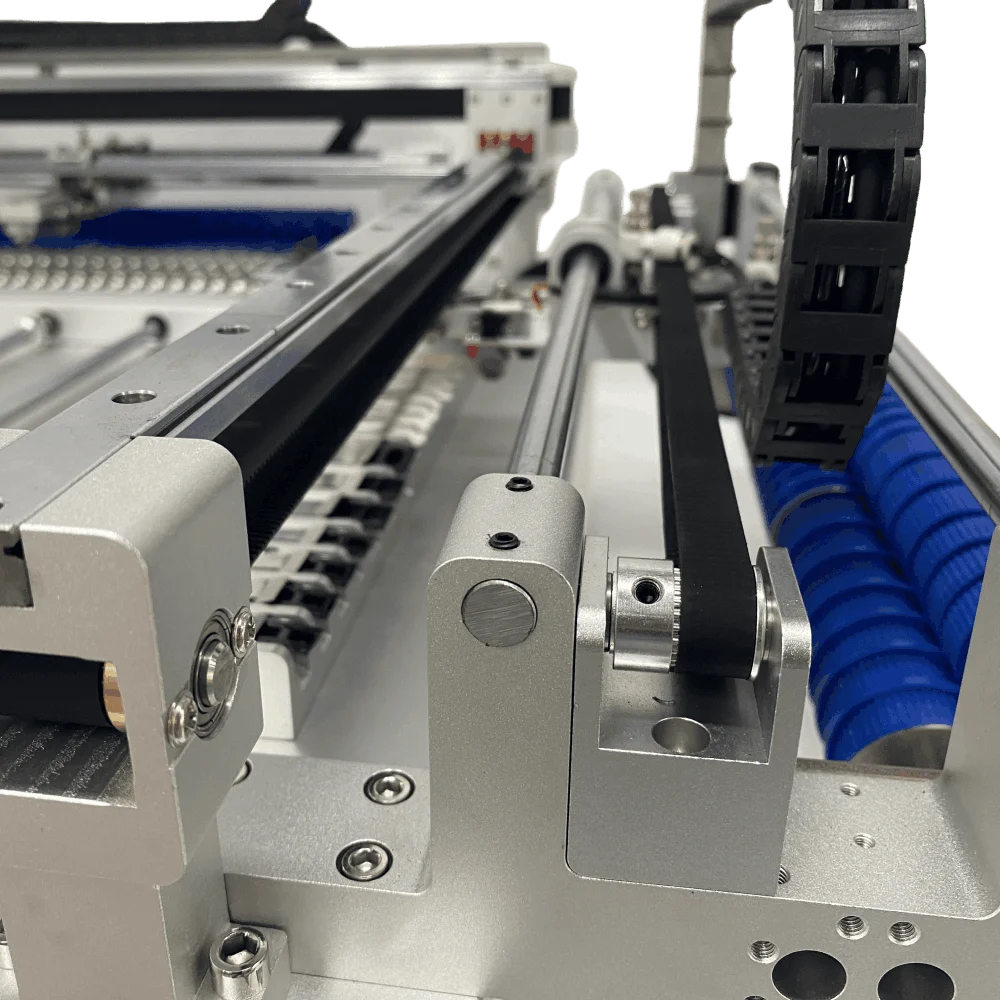

Synchronous belt+Linear guide rail
|
|
Power supply
|
220/110V 50/60Hz
|
|
Weight (Desk /Vertical)
|
85KG
|
|
Dimensions (Desk machine)
|
980×750×400MM
|
FAQ
Q: How is the training? A: After buying our machines, we will support all kinds of training (training video +user manual +online training etc.)
Q:Is it hard to use these machines? A: No, not hard at all. For our previous clients, about 2 days' training will make them operate the machines easily
Q:Is there any certificate for machine? A: All of our machines with CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q: The Warranty of the machine? A:AT least One year, then the parts will be free for the buyer in the warranty.
Q:English version for these machines? A:Yes
Q:Are machines can meet software update? A:YES, we will update machine regularly

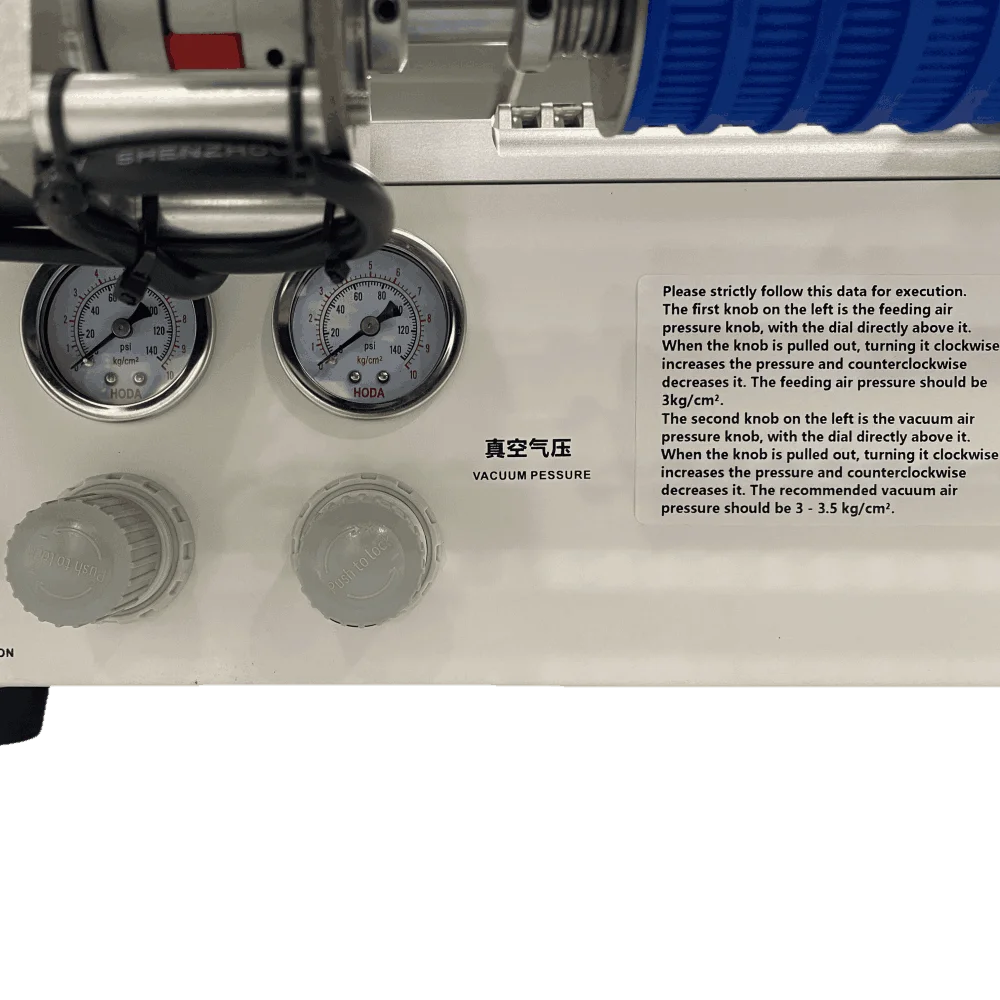

Q：What kind of maintenance is needed? A: Add lubricating oil to the guide rail, let the water drain away which from the oil-water separator, and clean the nozzle (we will support this oil)
